Honda Civic EK Coilover Install Instructions

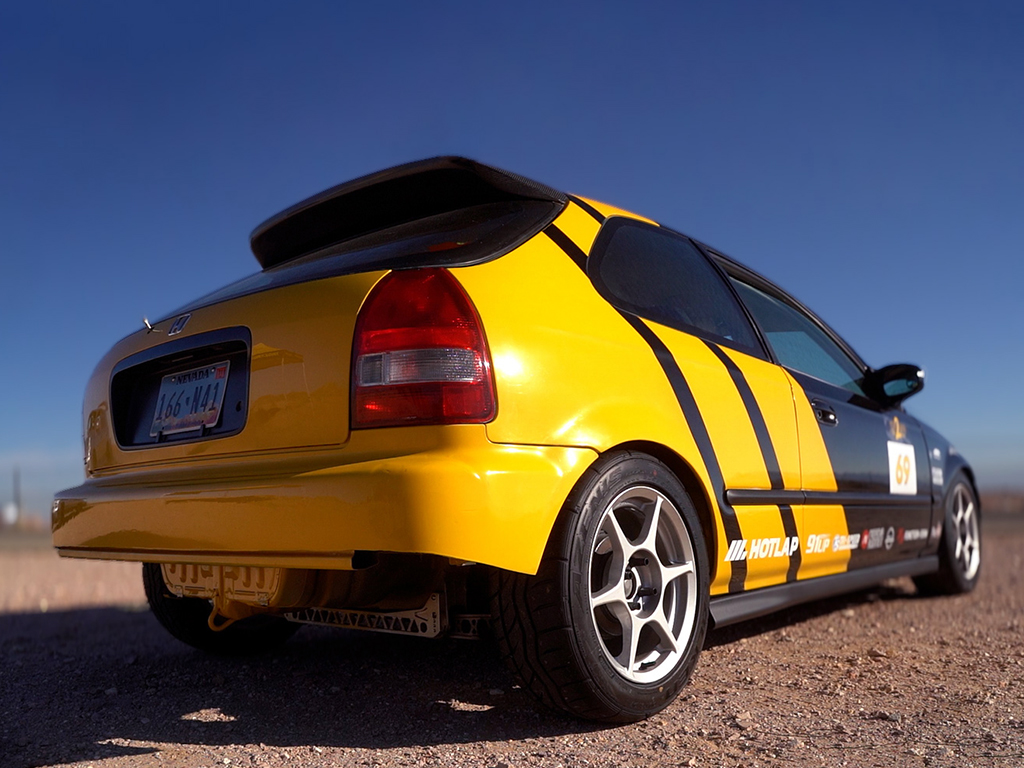

Welcome to the 1996–2000 Honda Civic EK coilover installation instructions. This step-by-step guide is designed to make your install process smooth and straightforward. We’ve included the recommended tools, factory torque specs, and key tips to help you get the best results. While this walkthrough highlights the Function and Form Type 2 Coilover kit, the same steps also apply to our Type 1, Type 3, and Type 4 systems for the sixth-generation Civic. For reference, our test vehicle is a Civic EK fitted with 205/50/15 tires on lightweight wheels. Once installation is complete, we recommend scheduling a professional alignment after a short settling period to ensure proper handling and tire wear. A link to our video tutorial is available at the end of this post for those who prefer a visual guide.
The sixth-generation Civic EK, produced from 1996 to 2000, carried forward Honda’s legacy of lightweight design and agile handling while introducing a more refined, modern look. With its double-wishbone suspension at all four corners, the EK offers excellent ride quality and sharp cornering straight from the factory. Its balance of practicality and performance has made it a beloved platform for enthusiasts, from daily drivers to competitive racers. Even decades later, the EK remains one of the most popular Civics to modify, thanks to its durability, strong aftermarket support, and timeless appeal. Installing coilovers not only enhances the stance but also elevates the EK’s already capable handling to the next level.
TOOLS NEEDED
Sockets: 19mm, 17mm, 14mm, 12mm.
Wrenches: 19mm, 17mm.
Impact wrench.
Socket 12 inch extension.
Ratchet.
Philips screwdriver.
Torque wrench.
Spanner wrenches (provided with kit).
Measuring tape (provided with kit).
Floor jack.
Jack stands.
Flashlight (optional).
Before beginning the installation, measure the distance from the center of each wheel to the fender for both the front and rear.
Determine your desired ride height adjustment, then write down these measurements for reference.
Safely lift the vehicle using the designated jack points.
Remove the wheels using a 19mm socket.
Unbolt the brake line bracket by with a 12mm socket.
Remove the bottom fork bolt on the lower control arm with a 17mm socket and 17mm wrench.

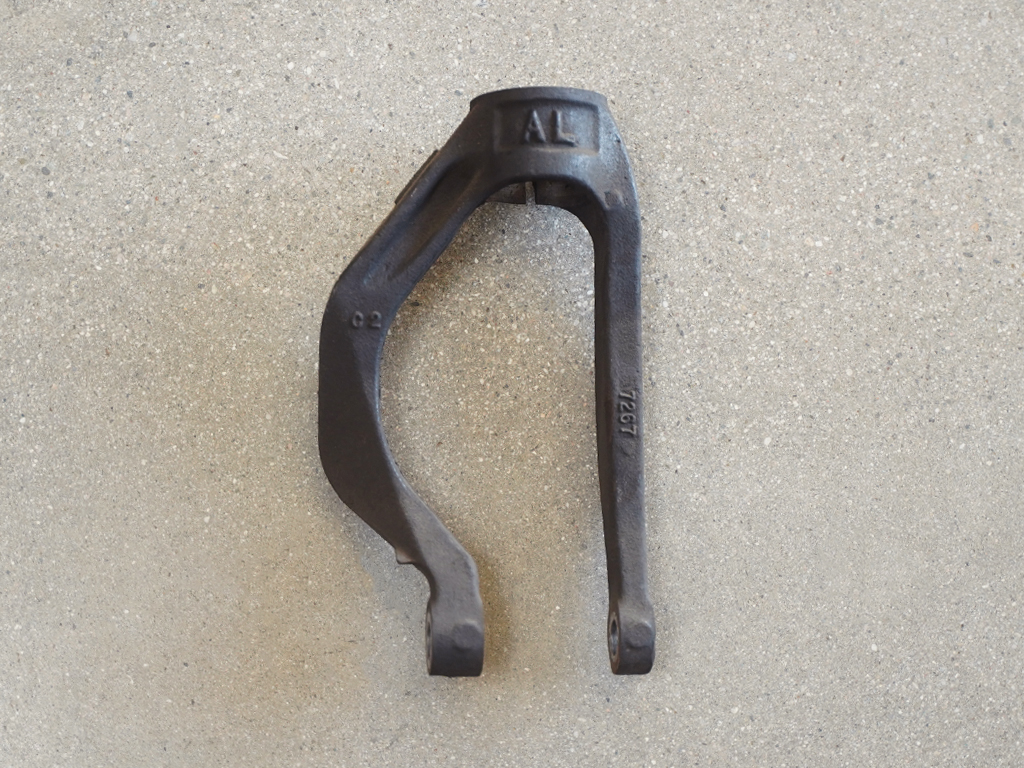

Loosen the fork bolt pinch bolt with a 14mm socket and remove the fork.
Remove the two top mount bolts with a 14mm socket and remove the strut.
Adjust coilover to desired height before install.
ATTENTION: Do not adjust ride height using the spring perches, as they are intended for spring preload adjustment only.
Click here for video on how to reset preload.
Place the strut into position and hand tighten the top hat nuts.
Install the fork and torque the lower mount bolt with a 17mm socket to 47 lb-ft.
Support the spindle and torque the 14mm pinch bolt to 32 lb-ft.
Torque the brake line 12mm bolts to 16 lb-ft.
Torque the two top hat nuts to 33 lb-ft.
Reinstall the wheels and torque the lug nuts to 80 lb-ft.
This concludes the front Honda EK Coilover instructions.

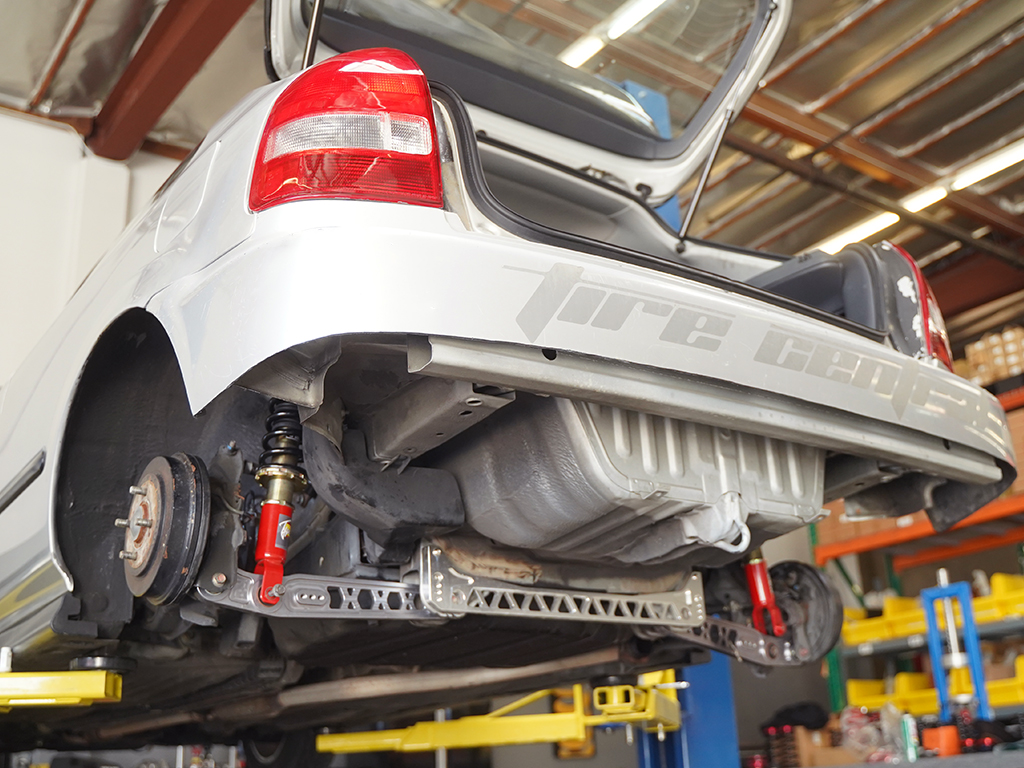

Rear Installation
Remove the rear wheels with a 19mm socket.
Jack up the rear lower control arm and remove the lower mount bolt with a 14mm socket.
Open the trunk and remove the rear speakers with a Philips head screwdriver to get access to the top mount bolts.
Remove the two top mount nuts with a 14mm socket, 12 inch socket extension, and remove the strut.
Make height adjustment to the coilover before installing coilover.
Place the coilover into place and torque the top hat 14mm nuts to 33 lb-ft.
Support the lower control arm and torque with a 14mm socket to 40 lb-ft.
Install the wheels and torque with a 19mm socket to 80 lb-ft.
This completes the Honda Civic EK Coilover Instructions. An alignment is recommended one week after installation to allow the suspension to settle properly.
