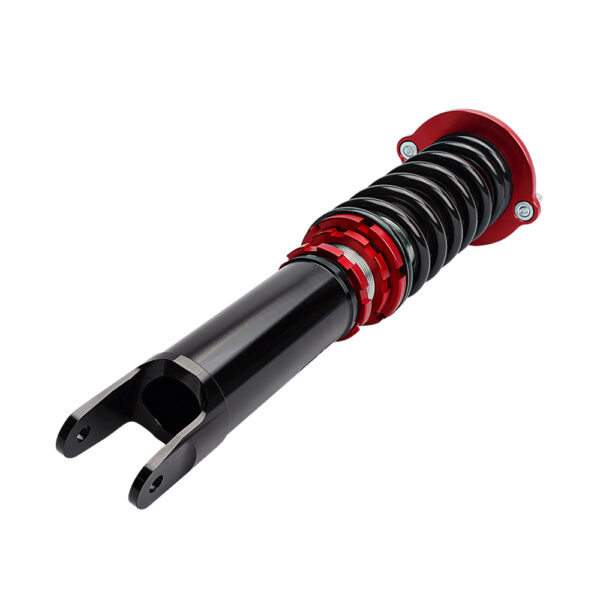

Acura CL YA1 (1997-1999) Type 2 Coilovers Kit


  • Full-bodied coilovers
  • Upper strut mounts included
  • Variable damping matched with proper spring rates
  • Cold-rolled Japanese steel springs
  • Quick install preload ready
  • Threaded body and lower mounts for ride height adjustments

In stock

The Acura CL is a midsize couple manufactured in East Liberty, Ohio from February 19, 1996 to 2003. The CL is thought to have been a replacement for the Acura Legend coupe, but in fact a replacement for a TL Coupe. The first generation of CL was offered with either a 3.0 L J30 V6 producing 200hp or 145hp from the 2.2L F22B1 I4 Engine. The 1998 and 1999 were replaced with a 2.3 L F23A1 with 150hp. The Second Generation CL was from 2000 to 2003. Function and Form Coilovers

Curb Weight 3,064 lbs (I-4), 3,285 lb (V-6)
Wheelbase 106.9 in
Length 190.0 in
Width 70.1 in
Height 54.7 in

32 levels of damping. damping adjustments made with a knob that “clicks” at each level
Ride height
Adjustable separate of pre-load
Steel lower mounts for maximum strength, top mounts included
Oil Lubrication
Special oil lubrication to withstand conditions from -40 degrees Celsius to 200 degrees Celsius
Shock Design
Dual tube shock design for maximum ride comfort
Double Wishbone Piston Size
MacPherson Strut Piston Size
Spring Rates
12k Front, 6k Rear
2 year manufacturer defect
Legacy SKU

P28100190.01 Type 2 Front Shock
P28100190.02 Type 2 Rear Shock
P28100190.0809 Top Mount Front
P28100190.10 Top Mount Rear
P28100190.1112 Lower Mount Front
P28100190.1314 Lower Mount Rear
P28100190.15 Bump Stop
P28100190.16 Dust Boot
